Edan VE-H100B Veterinary Pulse Oximeter

Edan VE-H100B Veterinary Pulse Oximeter
Item# ve-h100b
Regular price: $399.99
Sale price: $279.95
Availability: Usually ships the same business day

angelsounds fetal doppler baby heart rate monitor jpd100s

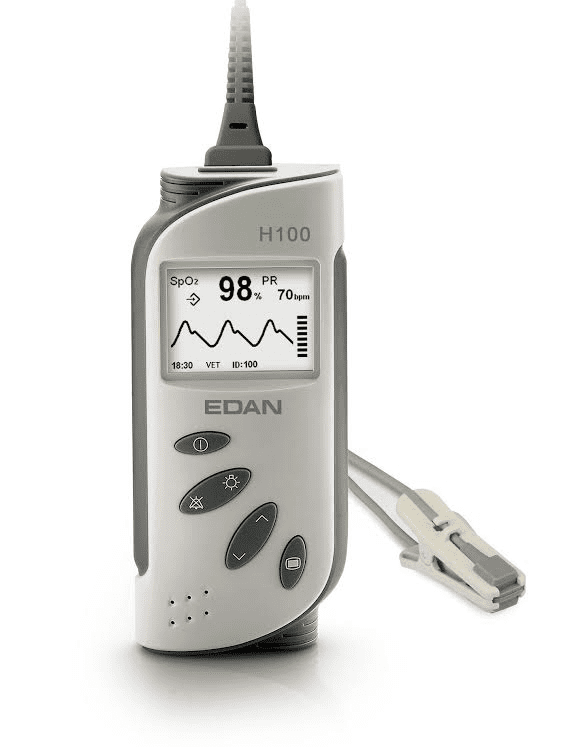

The VE-H100B Veterinary Pulse Oximeter is a handheld measurement tool for veterinary use. The VE-H100B displays precise measurements for spot-checking or continuous monitoring of blood oxygen saturation and pulse rate. A trend graph and table update with recent test results for reviewing the data.

Custom alarm thresholds are configurable within the oximeter’s menu settings. The alarms activate a visual or auditory alert when blood oxygen saturation or pulse rate tests fall outside the user’s upper/lower SpO2 or pulse rate limit range. A pulse rate tone also indicates the current pulse rate detected by the monitor.

Activity recordings are saved directly on the device’s built-in storage. All monitoring data is also transferable to a PC for storing, managing, reviewing, and printing the data. The device connects to a PC using a USB interface cable.





Features:

  • LCD display
  • RTC (Real Time Clock) display
  • Backlight switch and automatic power-off function for power saving
  • SpO2 and pulse rate measurement
  • Display number and waveform of SpO2 simultaneously
  • Long battery life - up to 48 hours on 4 “AA” or Ni-H rechargeable batteries
  • Powerful data storage capacity
  • Data can be transferred to PC for storage, review, and printing
  • The latest 10 minutes trend graph and table of SpO2 and Pulse Rate review on the screen
  • Compatible with Nellcor VETSAT veterinary sensor
  • Audible and visible alarm capability
  • Pitch Tone





Extended Specifications


Type of Protection: Internally powered equipment
Degree of Protection: Type BF - Applied part
Ingress Protection: IPX2
Mode of Operation: Continuous
Degree of Safety in Presence of Flammable Gases: Not suitable for use in presence of flammable gases
Compliant with Safety Standards: IEC 60601-1:2005+A1:2012, EN 60601-1:2006+A1:2013, IEC 60601-1-2:2007, EN 60601-1-2:2007; ISO80601-2-61:2011
Size: 160mm (L)x70 mm (W)x37.6mm (H)
Weight: 165 g (without battery)
Display (Screen Type): 128x64 dot-matrix LCD, with white LED backlight
Display (Big Numeric Mode): SpO2, PR, and Bar graph displayed
Display (Waveform Mode): SpO2, PR, Bar graph and Plethysmograph displayed
Alkaline Batteries (Quantity): 4
Alkaline Batteries (Total Rated Voltage): 6 V
Batteries (Capacity): 2600 mAh
Alkaline Batteries (Typical Operation Time): 48 hours or longer
Ni-MH Rechargeable Battery Package (Quantity): 1
Ni-MH Rechargeable Battery Package (Total Rated Voltage): 4.8 V
Ni-MH Rechargeable Battery Package (Capacity): 1800 mAh/1500 mAh
Ni-MH Rechargeable Battery Package (Typical Battery Life): 36 hours or longer (1800 mAh)/30 hours or longer (1500 mAh)
Ni-MH Rechargeable Battery Package (Charge Time): No more than 2.5 hours to 80%, No more than 4 hours to 100%
Measurement Range (SpO2): 0% ~ 100%
Measurement Range (PR): 25 bpm ~ 350 bpm
Accuracy (SpO2): ±2% (70% ~ 100%)
Accuracy (PR): ±2 bpm
Resolution (SpO2): 1%
Resolution (PR): 1 bpm
Sensor (Red Light): (660±3) nm
Sensor (Infrared Light): (905±10) nm
Sensor (Emitted Light Energy): < 5 mW
