Choice MD100B Handheld ECG Monitor

Choice MD100B Handheld ECG Monitor
Item# md100b
Regular price: $199.99
Sale price: $99.95
Availability: Usually ships the same business day

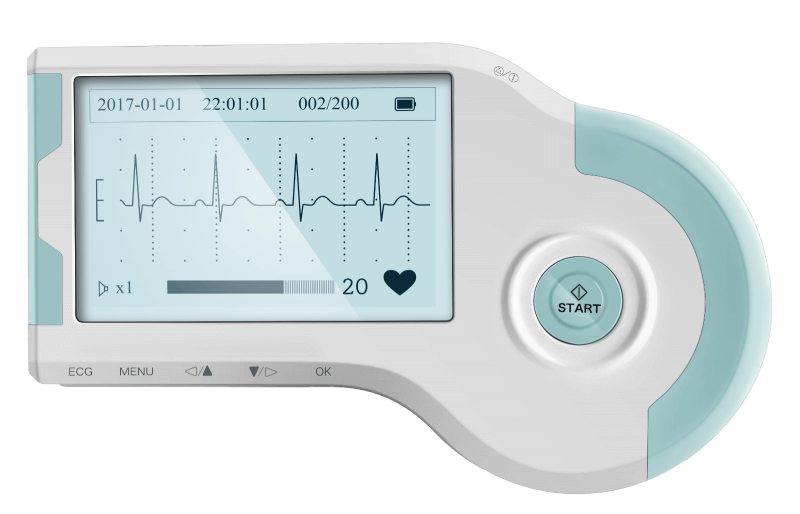

Handheld ECG Monitor MD100B


Manufacturer Part Number: MD100B


The MD100B Handheld ECG Monitor’s user-friendly design is suitable for home healthcare use. This heart monitor records one-channel ECG measurements in under 30 seconds. All individuals, especially those who may suffer from cardiovascular diseases such as hypertension, diabetes, coronary heart disease, those with symptoms of heart-throb, stuffy chest, suffer from adiposity, and middle-aged individuals will receive an accurate evaluation using this instrument.

Regular and frequent measurements of heart health conditions will help individuals and their doctors recognize risk factors in their early stages and act accordingly. For clinical ECG examination, users can reference the detailed heart data recordings directly on the device. The MD100B automatically evaluates results based on detected heart data.

MD100B

This portable ECG does not require the use of external wires or cables. One set of AAA batteries provides power for over 500 measurement readings for this device. The auto shut-down power management feature will turn the monitor off after 60 seconds without user input.

The MD100B uses USB to transfer data to a PC. With the included software, results can be reviewed, managed, and saved. Each ECG recording includes 30-seconds of waveform and analysis data. The machine’s built-in storage holds recording results for up to 200 tests. Know your heart; know your health.





Features:

  • Completely cable and electrode free
  • Fast measurement in just 30 seconds
  • 200 recordings of ECG Strips, each record holds 30-seconds of ECG waveform and analysis results
  • Measurement of one channel ECG anytime, anywhere you like
  • Display of ECG waveform, heart rate, analysis results, and battery status on the backlight LCD
  • Transfer measurement results to PC via USB
  • Auto power-off after 60 seconds without key press
  • Auto-evaluation based on detected heart data
  • Dual measuring modes
  • 2 AAA batteries provide power for over 500 measurements
  • Review data


Accessories:

1. A hanging cord
2. 2 batteries
3. A pouch
4. A User Manual
5. USB Data cable & Software (optional)
6. ECG cable (optional)


Display:

Type: FSTN Parameters: 240*160 LCD


Storage:

Data, and ECG strips storage
HR: 10 days heart rates data storage
ECG Strips: 24 hours Measurement results storage




Extended Specifications


ECG bandwidth: 0.05Hz - 120Hz (-3dB)
ADC Resolution: 10 bit
ECG Sampling Rate: 250Hz
Heart Rate Measurement Range: 15bpm - 300bpm
Accuracy of Heart Rate Measurement: 15bpm - 100bpm: ±1, 100bpm - 300bpm: ±2
Dimensions: 130mm(L)x65mm(W)x20mm(H)
Weight: 140g (including batteries)
Operating Temperature: 0°C ~ 50°C
Operating Humidity: ≤90%RH
Storage Temperature: -20°C ~ 60°C
Atmospheric Pressure: 86 - 106kPa
Power Supply: 2.0V DC - 3.2V DC
Battery: 2x AAA alkaline batteries
Max Working Current: 50mA
Safety Classification: IEC 60601-1
Type of Protection: Internally powered equipment
Degree of Protection: CF
Display Type: FSTN LCD
Display Resolution: 240x160
Storage: Data, and ECG strips storage
