FL330 Wearable Pulse Oximeter with Vibration Alarm, APP and PC Software

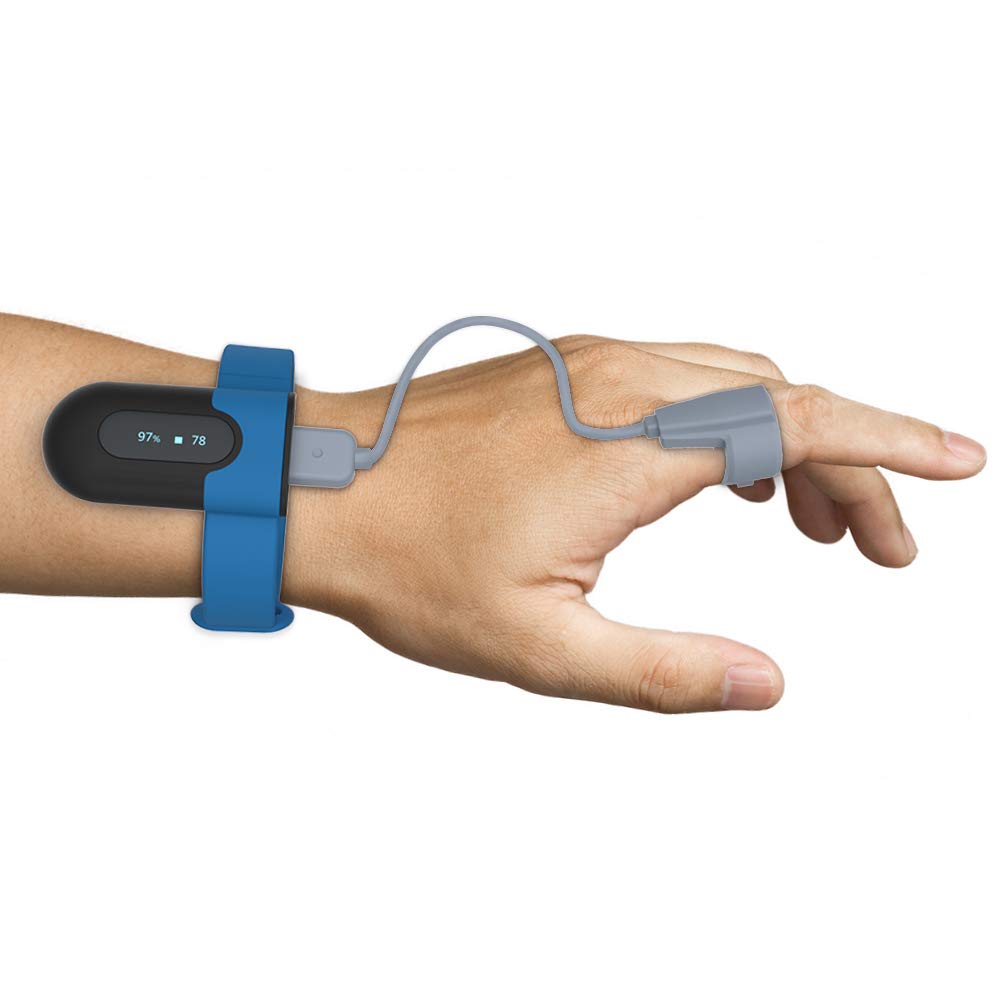

The FL330 Wrist Pulse Oximeter digitally monitors blood oxygen saturation levels and pulse rate. The device is worn on the user’s wrist with a secure adjustable wristband. The removable soft silicone ring sensor was designed to fit on any finger and allow for a wide range of motion.

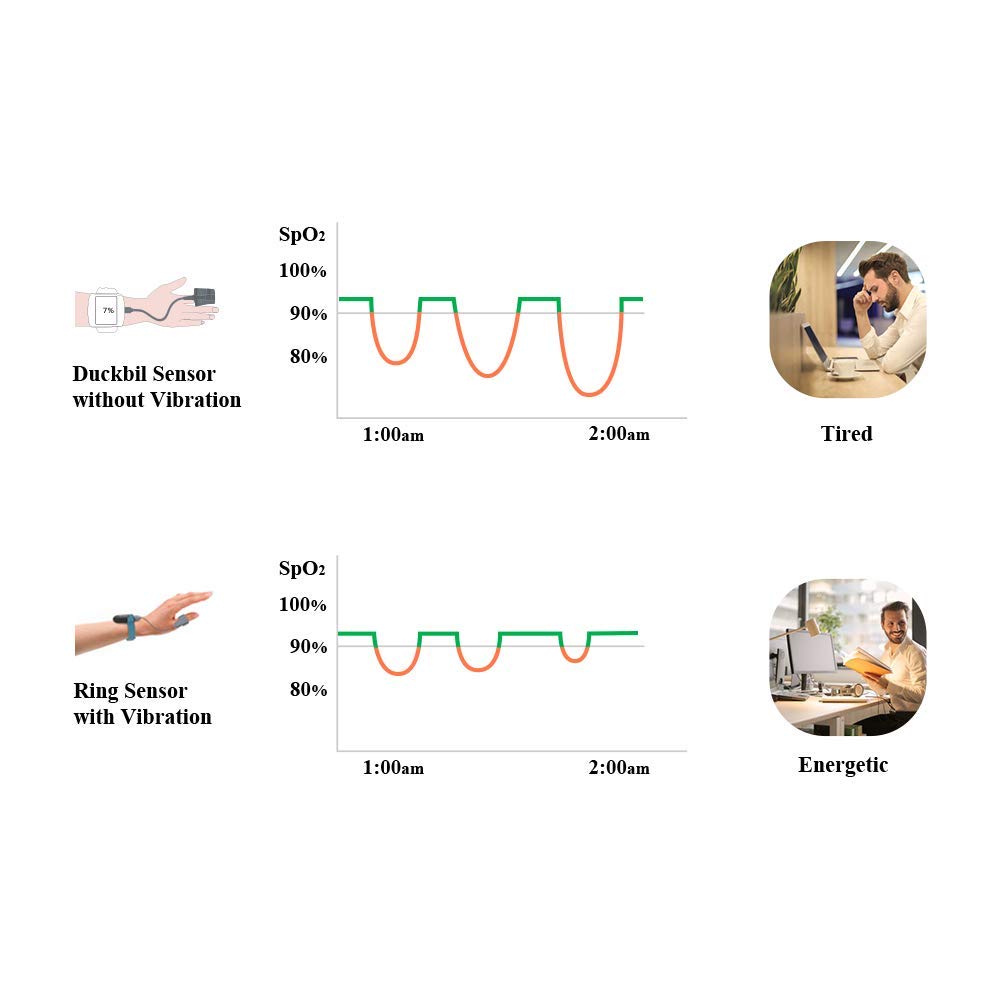

The FL330 supports overnight continuous recording of blood oxygen saturation levels, heart rate, and movement. The adjustable vibration alert gently nudges the wearer to wake when the oximeter detects SpO2 levels below the user’s defined level. The vibration also alerts the wearer to adjust their position to reduce snoring, resulting in greater levels of oxygen intake. The backlit display reduces eye strain through the use of blue LEDs.
The monitor’s oval-shaped design and rounded edges won’t cause discomfort to the user when worn overnight or while exercising. The built-in battery is rechargeable via a standard USB connection. The lithium-ion battery lasts for up to 16 hours of continuous recording.

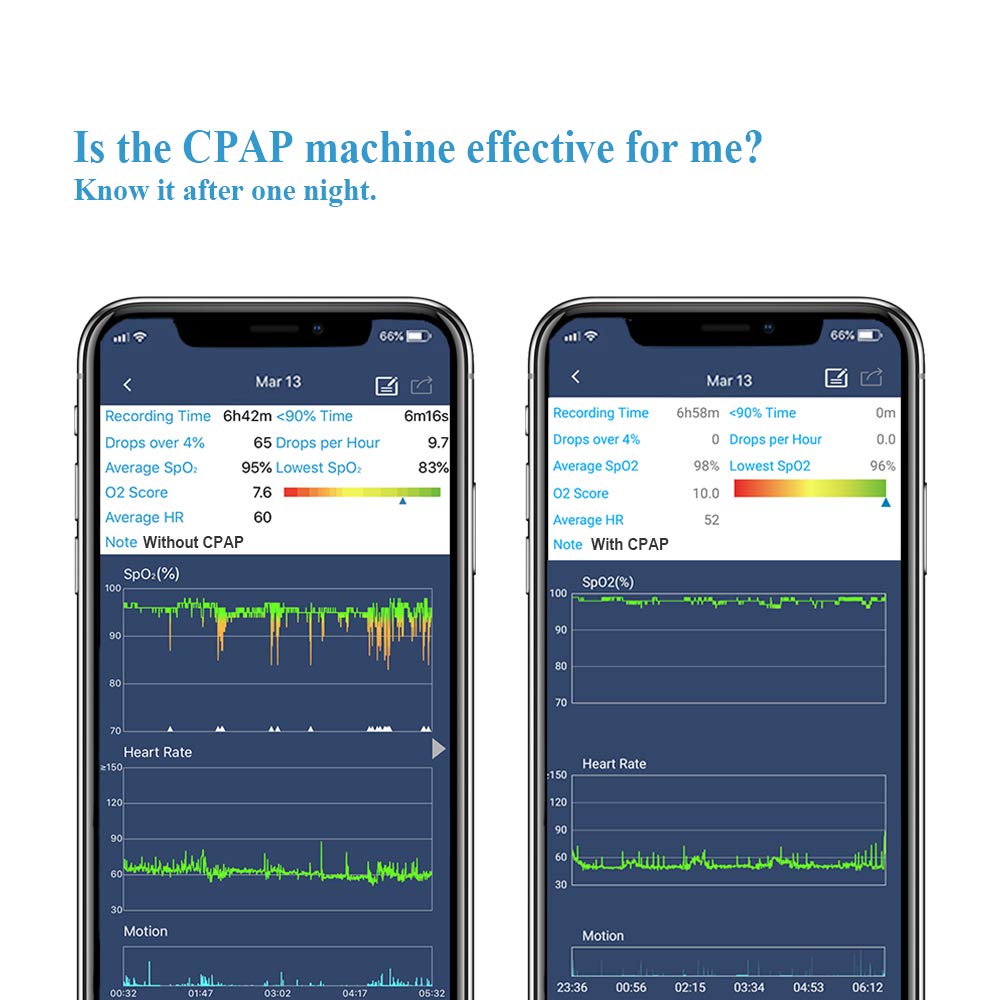

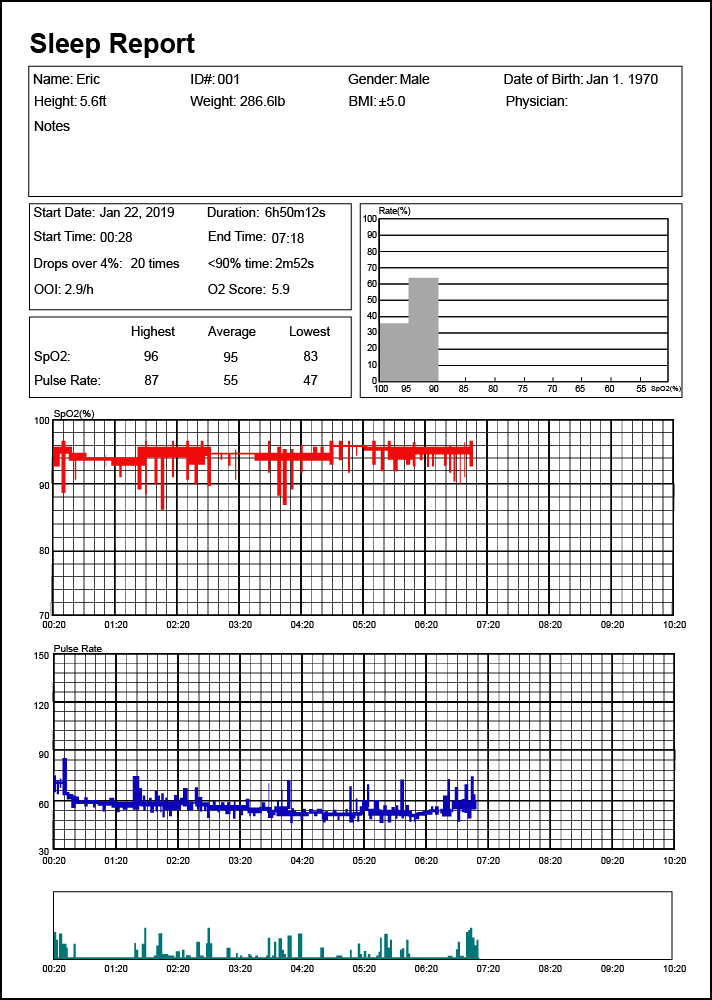

Measurement history is stored directly on this wrist oxygen monitor’s internal memory. The free PC software generates sleep reports that can be exported and saved in PDF or CSV formats. The reports can be easily shared with health professionals or friends! The software is ONLY compatible with Windows PC systems (not compatible with Mac). The free iOS and Android app includes features for sharing overnight blood oxygen trend reports and displaying real-time measurement information from the FL330 oxygen meter.
Extended Specifications
Operating Temperature: 5 to 40°C |
Storage Temperature: -25 to 70°C |
Relative Humidity (Operating): 10% to 95% |
Relative Humidity (Storage): 10% to 95% |
Barometric (Operating): 700 to 1060hPa |
Barometric (Storage): 700 to 1060hPa |
Protection Against Electric Shock: Internally Powered Equipment |
Degree Protection Against Electrical Shock: Type BF |
Electro-magnetic Compatibility: Group I, Class B |
Degree of Dust & Water Resistance: IP64 |
Weight: 18g |
Size: 44 x 26 x 17mm |
Battery: 3.7Vdc, Rechargeable Lithium-polymer |
Charge Time: 2-3 hours |
Wireless: Bluetooth 4.0 BLE |
Oxygen Level Range: 70% to 100% |
SpO2 Accuracy: 80-100%:±2%, 70-79%:±3% |
Pulse Rate Range: 30 to 250 bpm |
Pulse Rate Accuracy: ±2 bpm or ±2%, whichever is greater |
Vibration: Triggered by low oxygen level |
Recorded Parameters: Oxygen level, Pulse Rate, motion |
Data Storage: 4 records, 10 hours for each |
Mobile App (iOS): iOS 9.0 or above, iPhone 4s/iPad 3 or above |
Mobile App (Android): Android 4.4 or above, with Bluetooth 4.0 BLE |
Display Interval in App Data Chart: 1 minutes |
