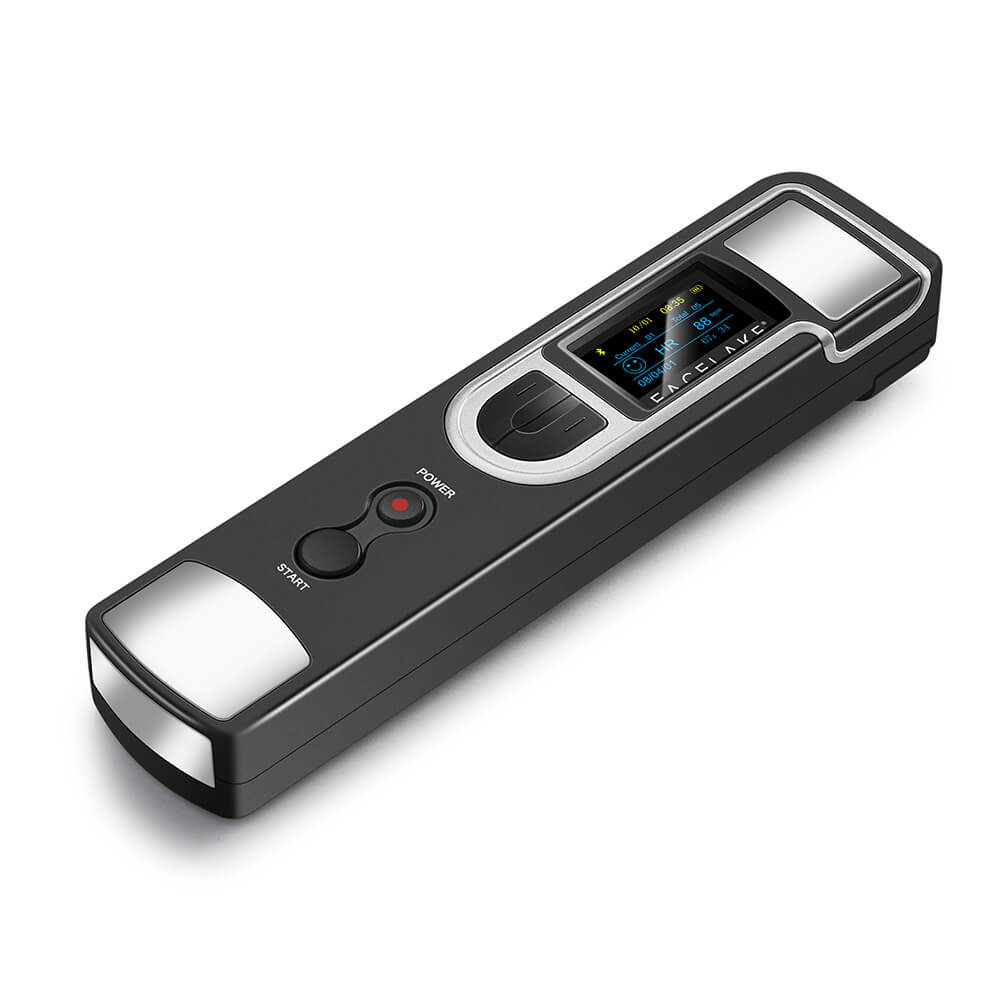

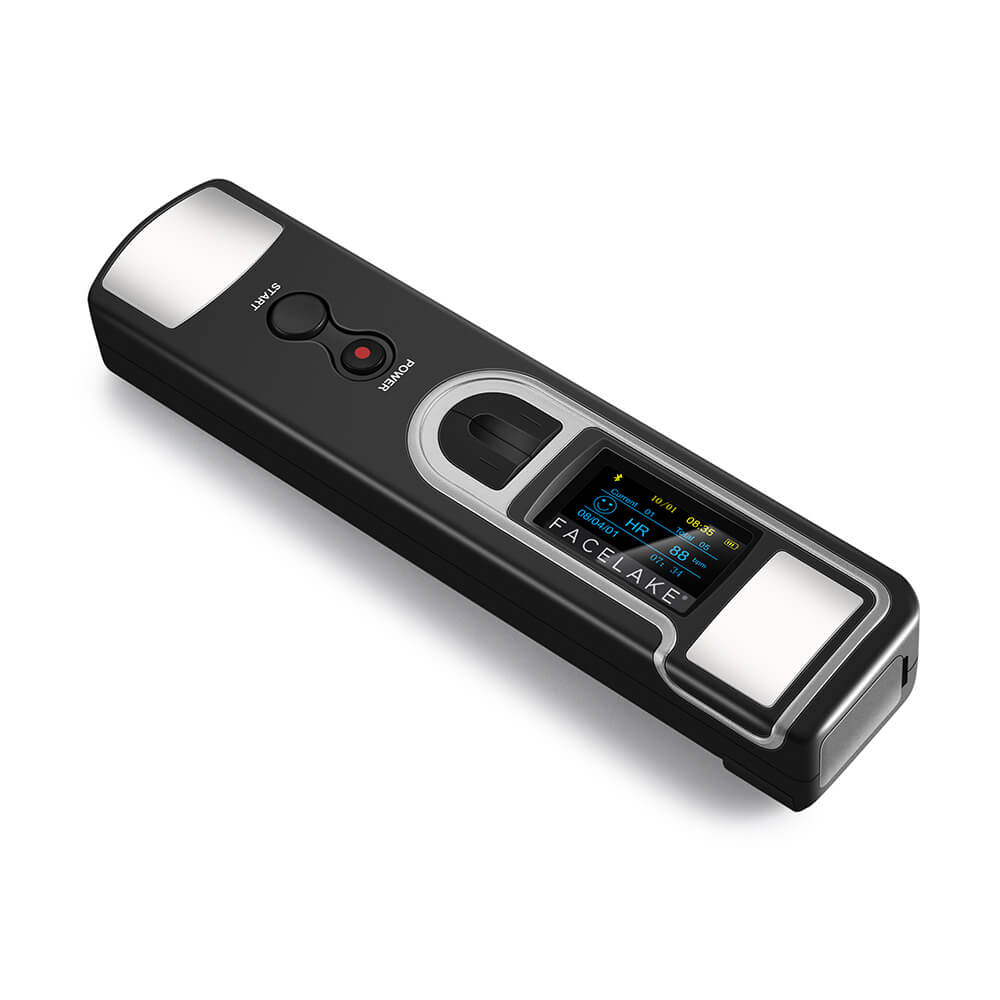

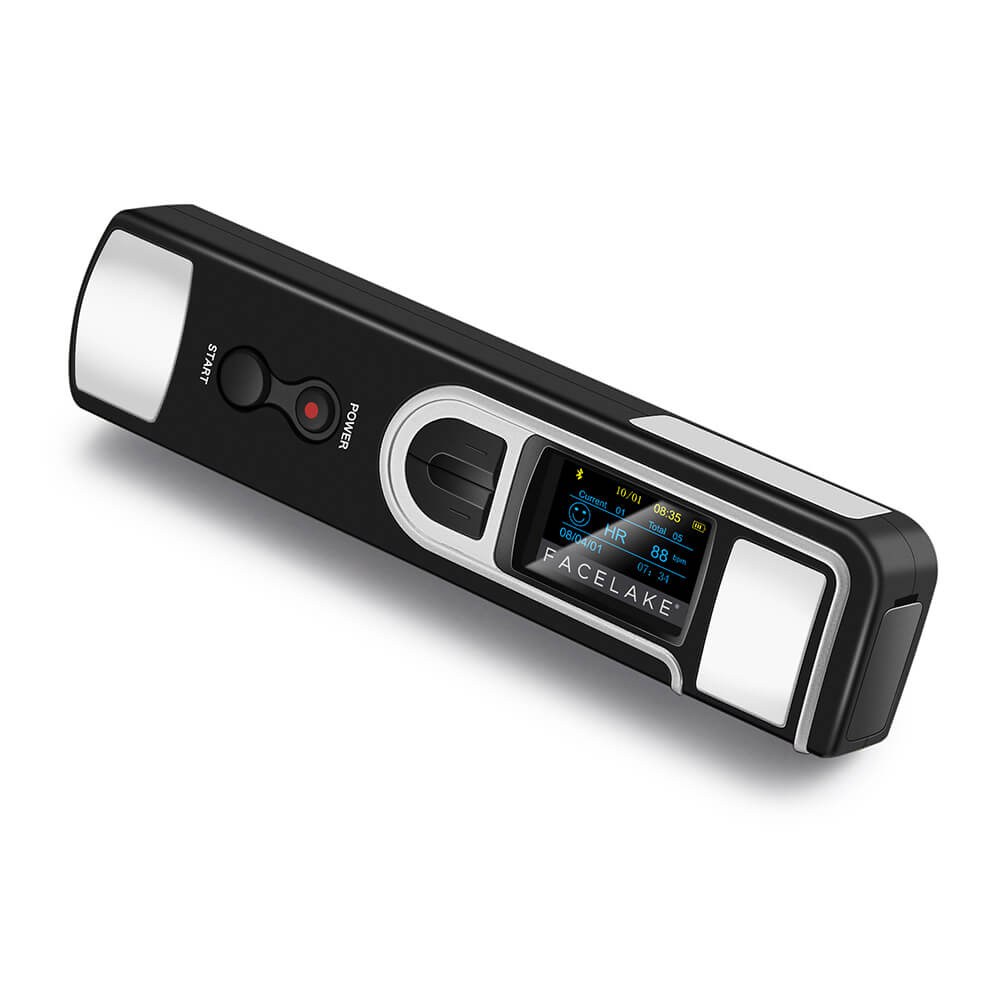

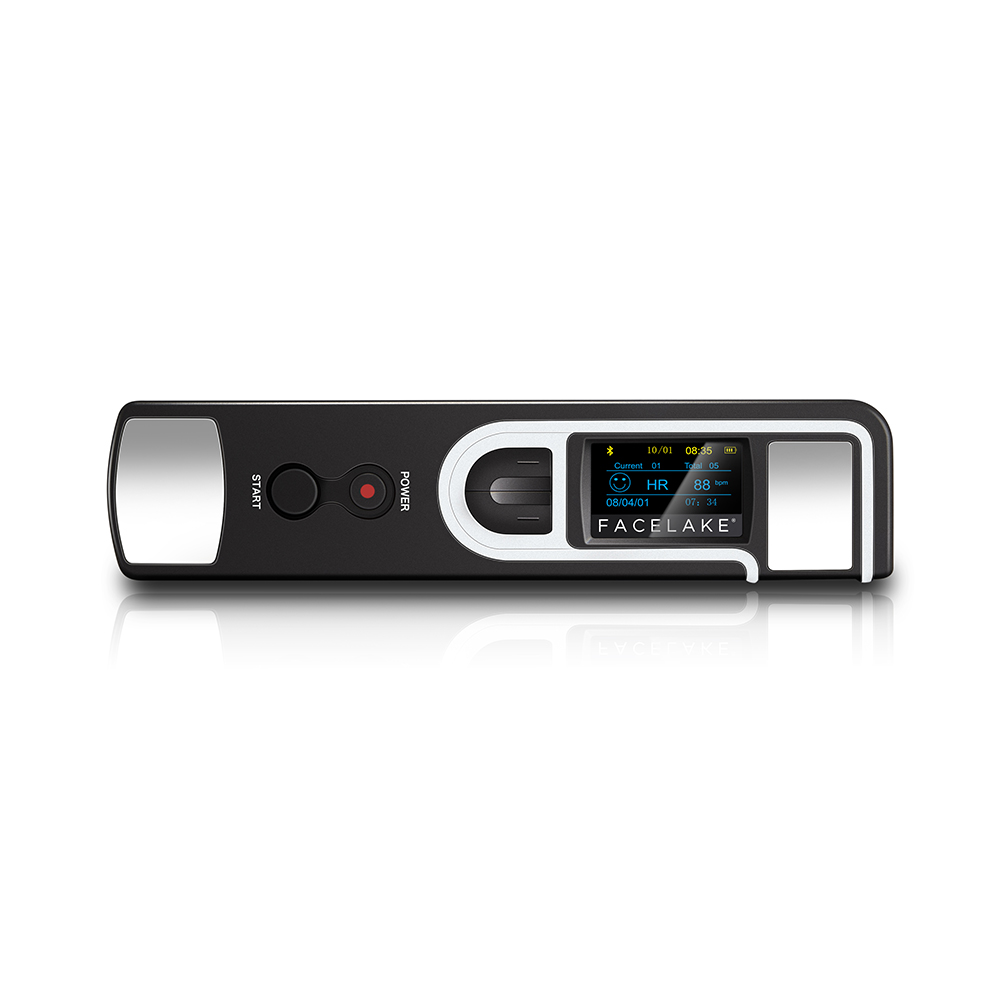

The FL30 EKG Monitor is used to take EKG readings without external wires, cables, or gels. This handheld ECG monitor uses built-in sensors to take measurement readings from an individual. The monitor detects heart rate, rhythm, and symptoms within 30 seconds.
This device’s portable design allows the user to take a measurement reading anywhere. The monitor comfortably fits in the user’s hands without causing discomfort or strain when gripping the sensors. A real-time graph animation of heart rate activity displays on the sharp backlit screen that faces the user during measurement.
This personal EKG monitor includes an auto-shutdown feature, an auto-evaluation feature, and measurement recording history. This device stores data for up to 20 measurement readings on the internal memory. Onscreen instructions guide the user through the steps of the ECG test.
Note: This device is not intended to diagnose or treat any medical condition or disease. Data on the device is for reference purposes and is not intended to substitute for advice given by a physician, pharmacist, or other licensed healthcare professional. You should not use this information as self-diagnosis or for treating a health problem or disease. Contact your healthcare provider immediately if you have any cardiac symptoms. This device is intended to be used for initial evaluation as reference only.
Features
Small, portable, and easy to operate
Fast measurement in just 30 seconds
20 recordings of heart rate, measurement results, and data analysis
Display of heart rate, measurement result, date, time, and battery status on the OLED screen
Auto power-off while no key is pressed in 10, 30, 60, 120 (can be set) seconds
Auto-evaluation based on detected heart data
Data Review freely

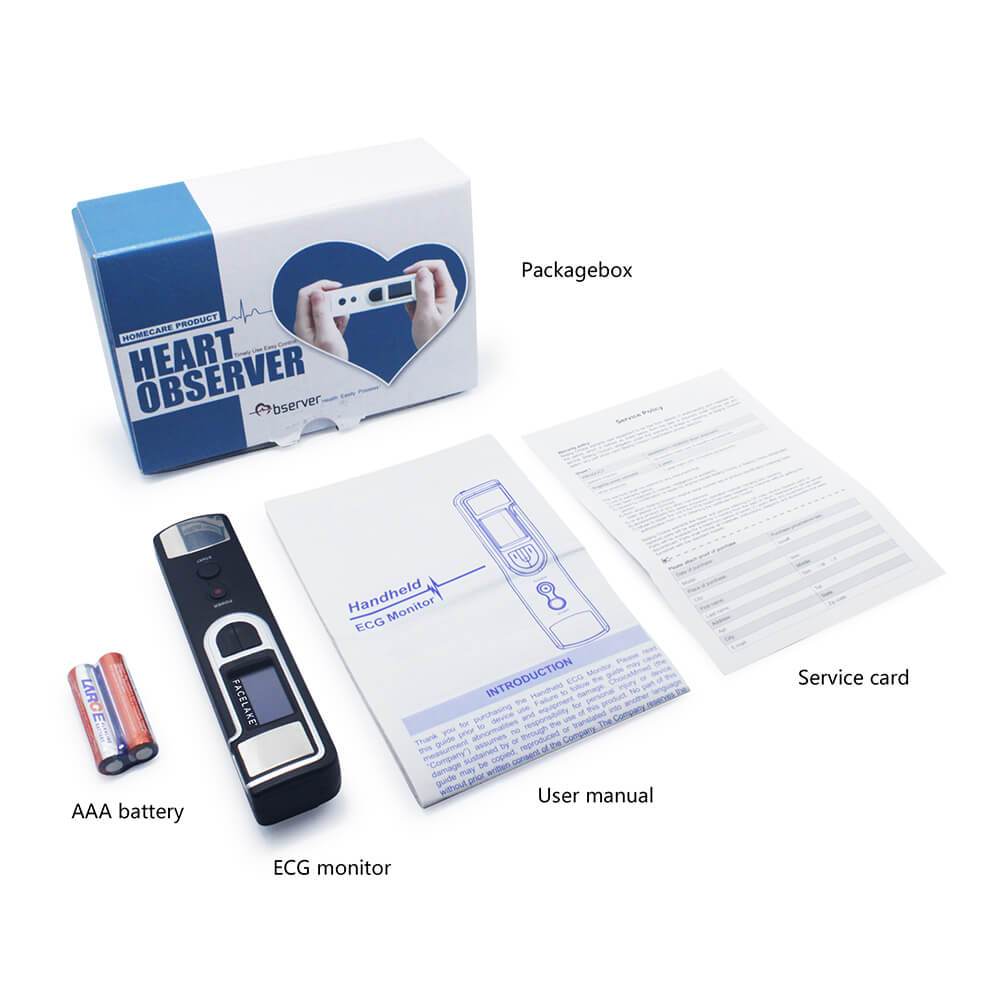

Accessories
Two AAA-size Batteries
One Instruction manual
One sheet of material
One Quick Operation Guide
Extended Specifications
Dimensions: 130mm (L) * 30mm (W) * 20mm (H)
Weight: 110g (with alkaline batteries)
Operating Temperature: 5°C - 40°C
Storage Temperature: -20°C - 70°C
Operating Humidity: 15% ~ 93%, no condensation
Storage Humidity: ≤93%, no condensation
Storage Atmospheric Pressure: 86kPa - 106kPa
Operating Atmospheric Pressure: 70kPa - 106kPa
Screen Type: OLED
Parameter: Heart Rate
ECG Bandwidth: 1Hz - 40Hz
ECG Sampling Rate: 250Hz
ECG Measuring Range: 30bpm - 240bpm
ECG Measuring Accuracy: 30bpm - 100bpm ≤ ±2bpm, 101bpm - 240bpm: ±4bpm or 2% (the smaller)
