Finger pulse oximeter with alarm and perfusion index(PI)

Out of stock! Warranty icon

Here are some similar items...

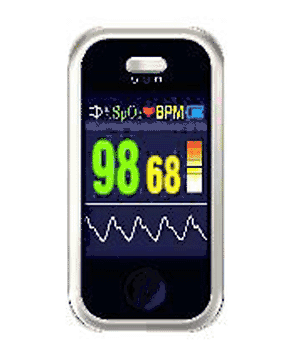

Pulse Oximeter, CMS-50H, CMS50H, Oxygen Meter,Oxygen Meter Level

FDA 510K Approved
Free Advanced Analysis Software
Free carry case
Free neck strap
Warranty: 1 year

This Oxygen oximeter can record the data and transfer it to your computer, then you can analyze it.
Technical Parameters

* USB interface to Computer
* Synchronous display on the oximeter and computer
* Inner flash memory for more than 30 hours data storage
* Free Advanced software for sleep study and monitoring ±

Features
*Integrated with SPO2 probe and processing display module
* Can be used in: hospital, home, community medical treatment,sports health care, etc.
* Can measure SPO2 and PR accurately
* SPO2 and PR display, PR waveform and bar graph display
* Battery voltage indicator
* Friendly Operation Menu for The Function Setting
* 4 Direction Display, The display direction can be changed automatically.
* Can display Perfusion Index(PI),PI indicates arterial pulse signal strength and may be used as a diagnostic tool during low perfusion for accurate prediction of illness severity.
* Four levels adjustable brightness
* Pulse sound function
* Alarm function; can set upper and lower limits.
* Can store data
* USB interface to Computer, software can analysis, store and print the data.
* Rechargeable Li battery
* Low power consumption; shut off automatically when no signal
* Small volume(57(L) * 32(W) * 30(H) mm)light convenient to carry

Technical Parameters
* Display Format: True Color OLED With 4 Direction Dispaly
* 1.3' 65K Color OLED display, resolution
* Pulse Wave: Color OLED Graphic Display
* Battery Voltage Indication: Color OLED Graph.
* Compact Size:
* Friendly Operation Menu for The Function Setting.
* Alarm: Visual and Audio
* Alarm Setting: 35%-99%
* Pulse sound: Yes
* Power Supply: 3.7V Rechargeable Lithium Polymer Battery
* Charger: USB Charger like Apple ipod and AC charger
* Power Consumption: less than 20 mA( Wireless and Alarm not work).
* SPO2:35%-99%
* Pulse Ratio:30-255 BPM
* Resolution: 1% for SPO2 and 1 BPM for Pulse Ratio.
* Accuracy: ±2% in stage of 70%-99% for SPO2
* Unspecified in stage of 35%-69% for SPO2
* ±2%BPM or ±2%(Select Larger) for Pulse Rate
* It is equipped with a function switch, through which the Oximeter can be automatically powered off when no finger is in the Oximeter more than 4 seconds( Not available in Sleep study and Monitoring)

Package Contents:

1x CMS 50H Fingertip Pulse Oximeter
1x Neck/wrist cord
1x DC power adaptor plug
1x USB Connector cord
1x PC Software Disk
1x 3.7V Rechargeable lithium battery (Super long battery life)
1x User manual
1x Carry case

Software Screen shot:

SPO2 Report --Full Study Report
SPO2 Report --Oximetry Report
SPO2 Report --Strip Chart Report
SPO2 Report --Summary Report

CMS-50H Software Download
